Lead Pipes

We manufacture a wide range of lead extrusion including Lead Pipes, Lead Profile And Lead Bar. Our seamless Lead Pipes are extruded as per our customer’s specification and required sizes.

Lead Pipe (Seamless) is readily fabricated by extrusion. Lead Metal have excellent property of corrosion resistance and flexibility. Various alloys are available from pure at 99.97% through various copper, tin and antimony alloys in varying percentages. The low melting temperature of lead, high density, corrosion-resistance, malleability and relative low cost make it attractive for use in many applications.

We supply Lead Pipes that finds many uses in the chemical industry.
Lead pipes are generally, but not exclusively, used for carrying acids and corrosive chemicals or for sheathing sensitive communication cable runs for waterproofing purposes.

We custom manufacture lead pipe with ID ranging from 3/4" to 5", OD from 1" to 5.5" and Wall Thickness of 1/8", 3/16" and 1/4"
All pipe and sleeves can be slit or cut to any length or need. We can customize your product to your specific needs.

Composition
Lead Pipe is made from either Chemical Pure Lead 99.97% or up to 6%  Lead Antimony Alloy.

Applications

• Lead pipes are still used in industry today because of the properties of lead that include malleability, flexibility and resistance to corrosion. Typical applications include chemical plants, nuclear plants, paper manufacturing plants and Hydro and plating applications.


• Lead pipes are used in pulp and paper industry in cooling systems which use sulphur dioxide gases and in transporting the bleaching stock which uses hydrogen peroxide or zinc hydrosulphite and for draining the discharge from the pulp digesters.


• Other applications for Lead Pipes are for Soil Waste, Ventilating, and telephone and telegraph underground piping, pressure tubes (copper lead) and cable sheathing.

Packing

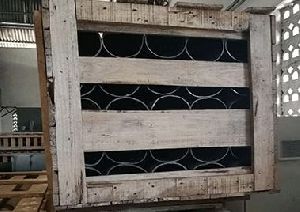

The lead pipe are packed in wooden caret box for most of the time to avoid pipe from bending, also lead pipe is packed in grass with Bardan.

Storage

• Lead is one of the heaviest metals in use in the modern world. Care must be taken to ensure that if lead pipe is stored above ground level, the means of storage is strong enough to accept the weight of the product.


• Irrespective of the method of storage, lead pipe must be kept in a dry environment until the application phase to ensure that no unsightly staining can occur if the storage area is damp.

Handling

• Lead is a soft heavy metal this brings advantages during application but caution must be exercised in handling. Lift with Proper lifting equipment - seek assistance where necessary.


• Always ensure the safety of operatives lifting and moving Lead pipe.

PERSONAL PROTECTIVE EQUIPMENT (PPE) to be used while handling lead .

• Eye/Face Protection: Wear safety goggles.


• Skin Protection: Wear protective clothing e.g. gloves, aprons, boots.


• General Hygiene Considerations while handling Lead: It is good practice to: avoid breathing product; avoid skin and eye contact and wash hands after handling.

Health & Safety

• Wear the appropriate protective clothing & gloves when handling Lead.


• Wash your hands and forearms as soon as you finish and before you eat or drink.


• For health and safety reasonsWe manufacture a wide range of lead extrusion including Lead Pipes, Lead Profile And Lead Bar. Our seamless Lead Pipes are extruded as per our customer’s specification and required sizes.

Lead Pipe (Seamless) is readily fabricated by extrusion. Lead Metal have excellent property of corrosion resistance and flexibility. Various alloys are available from pure at 99.97% through various copper, tin and antimony alloys in varying percentages. The low melting temperature of lead, high density, corrosion-resistance, malleability and relative low cost make it attractive for use in many applications.

We supply Lead Pipes that finds many uses in the chemical industry.
Lead pipes are generally, but not exclusively, used for carrying acids and corrosive chemicals or for sheathing sensitive communication cable runs for waterproofing purposes.

We custom manufacture lead pipe with ID ranging from 3/4" to 5", OD from 1" to 5.5" and Wall Thickness of 1/8", 3/16" and 1/4"
All pipe and sleeves can be slit or cut to any length or need. We can customize your product to your specific needs.

Composition
Lead Pipe is made from either Chemical Pure Lead 99.97% or up to 6%  Lead Antimony Alloy.

Applications

• Lead pipes are still used in industry today because of the properties of lead that include malleability, flexibility and resistance to corrosion. Typical applications include chemical plants, nuclear plants, paper manufacturing plants and Hydro and plating applications.


• Lead pipes are used in pulp and paper industry in cooling systems which use sulphur dioxide gases and in transporting the bleaching stock which uses hydrogen peroxide or zinc hydrosulphite and for draining the discharge from the pulp digesters.


• Other applications for Lead Pipes are for Soil Waste, Ventilating, and telephone and telegraph underground piping, pressure tubes (copper lead) and cable sheathing.

Packing
The lead pipe are packed in wooden caret box for most of the time to avoid pipe from bending, also lead pipe is packed in grass with Bardan.

Storage

• Lead is one of the heaviest metals in use in the modern world. Care must be taken to ensure that if lead pipe is stored above ground level, the means of storage is strong enough to accept the weight of the product.


• Irrespective of the method of storage, lead pipe must be kept in a dry environment until the application phase to ensure that no unsightly staining can occur if the storage area is damp.

Handling

• Lead is a soft heavy metal this brings advantages during application but caution must be exercised in handling. Lift with Proper lifting equipment - seek assistance where necessary.


• Always ensure the safety of operatives lifting and moving Lead pipe.

PERSONAL PROTECTIVE EQUIPMENT (PPE) to be used while handling lead .

• Eye/Face Protection: Wear safety goggles.


• Skin Protection: Wear protective clothing e.g. gloves, aprons, boots.


• General Hygiene Considerations while handling Lead: It is good practice to: avoid breathing product; avoid skin and eye contact and wash hands after handling.

Health & Safety

• Wear the appropriate protective clothing & gloves when handling Lead.


• Wash your hands and forearms as soon as you finish and before you eat or drink.


• For health and safety reasons it is recommend there be no exposed lead after your installation is completed. Disposal of all scrap lead must be handled in a proper environmentally & responsible manner. Check with your local by-laws for the proper way of disposing of the remaining scrap lead material. Installation should comply with requirements of local regulatory agencies and standards specified. it is recommend there be no exposed lead after your installation is completed. Disposal of all scrap lead must be handled in a proper environmentally & responsible manner. Check with your local by-laws for the proper way of disposing of the remaining scrap lead material. Installation should comply with requirements of local regulatory agencies and standards specified.
